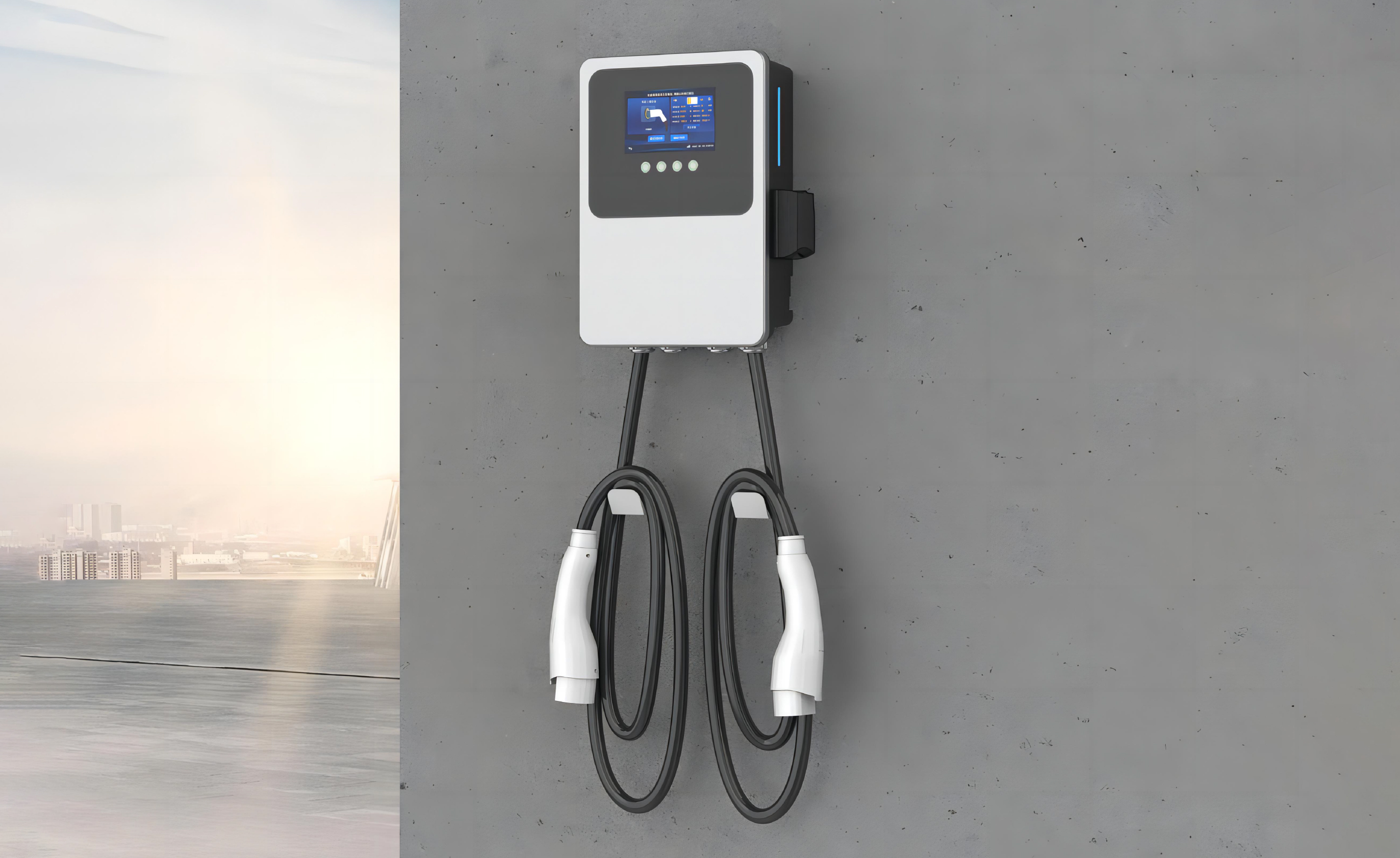

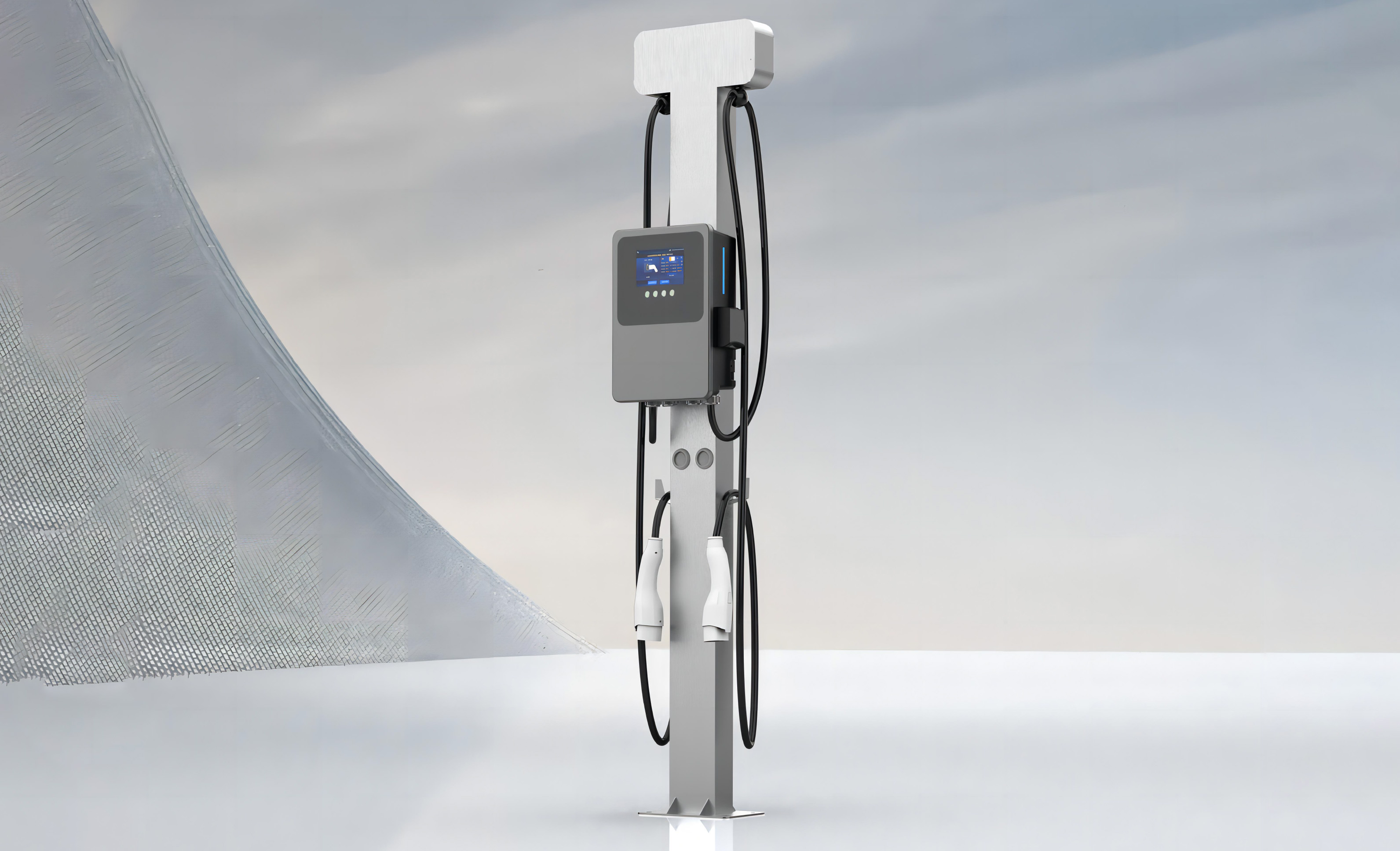

OEM compatibility ensures a smooth deployment for businesses, offering custom configurations that match workplace charging requirements.
Tethered | Cable
Single or Dual Connector
11kW/19.2kW Single | 23kW/38.4kW Dual
1ph: 200V-240V (±10%)
40A - 80A (Per Connector)
50Hz - 60Hz
Mobile APP (Customisable)
4.3" LCD Screen + 4 Buttons
RFID Reader
Payment Terminal
FreeCharging
RGB LED Indicator
WI-FI 802.11b/g/n 2.4 GHz
RJ45 Ethernet (CAT 5/6)
4G (Optional)
Bluetooth (Commissioning Purposes)
RS485
Integrated RCD/GFCI Leakage Protection
PEN Fault Protection (UKCA)
Tamper Switch (UKCA)
Surge Protection
Overvoltage | Undervoltage
Overtemperature
Overcurrent
Operating Temperature: -40°C ~ +55°C
Rating: IP66/Nema 4 | IK10
Humidity: 5% ~ 95%
Altitude: ≤2000m
H*W*D: 450*300*150mm
UKCA | CE | ETL
UKCA: BS EN IEC 61851-1:2019, BS EN 60947-4-1, BS 7671: 2018, EN IEC Standards, EMC Compliance
CE: EN IEC 61851-1:2019, EN 60947-4-1, RoHS, EMC Compliance, Directive 2014/53/EU of Radio Equipment
ETL: UL 2594, UL 2231-1/-2,, ISO 15118, CTEP, FCC Part 15 Subpart B, ICES-003, ETL, Energy Star, FCC

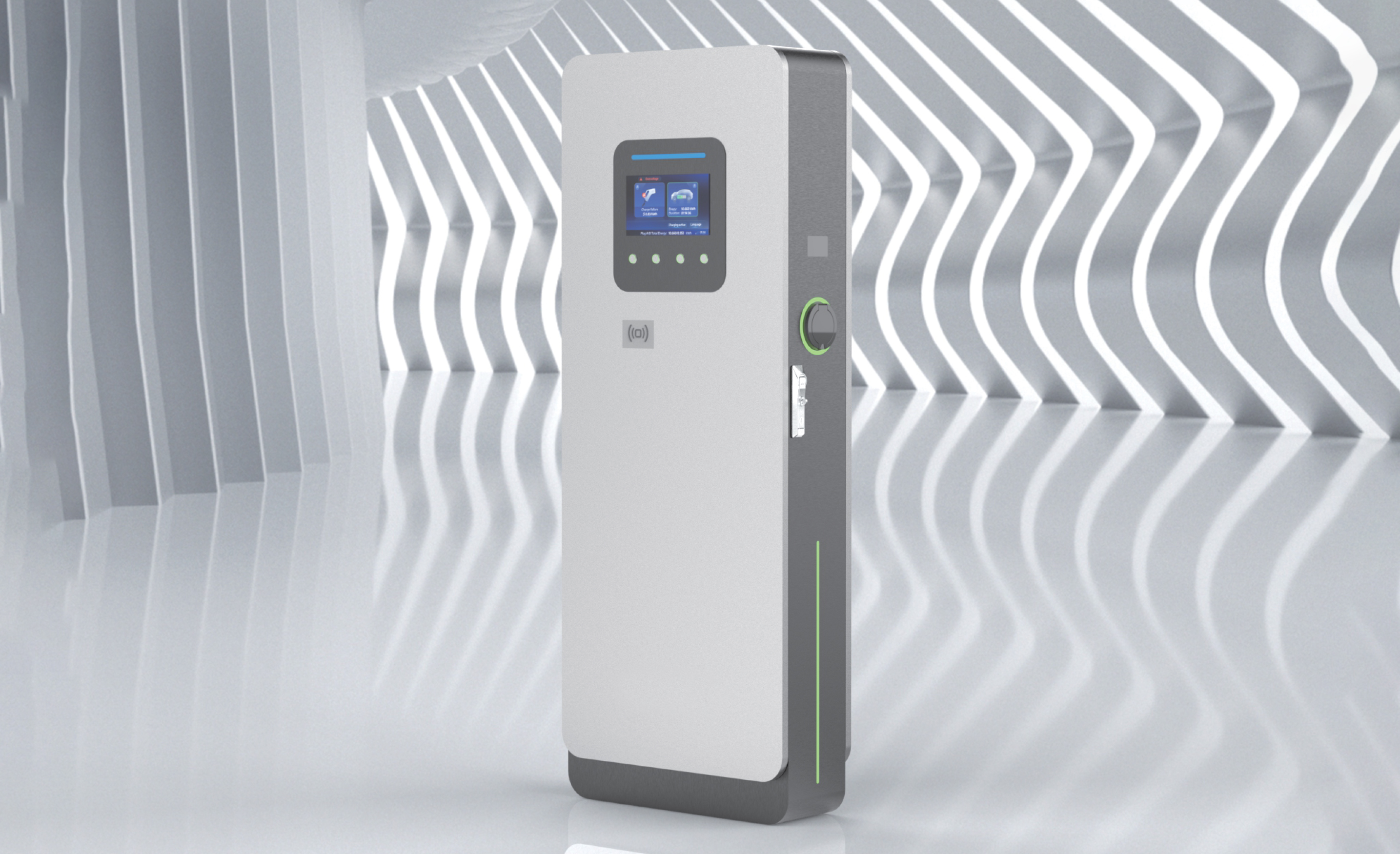

Offering an OEM-friendly design, this model is ideal for large-scale projects, providing scalable solutions for energy-efficient on-street charging.
Tethered | Cable
Single or Dual Connector
22kW Dual
1ph: 400V-480V (±10%)
6A - 32A (Per Connector)
50Hz - 60Hz
MID Meter Class 1.0
Mobile APP (Customisable)
10.1" LCD Screen + 4 Buttons
RFID Reader
Payment Terminal
Plug & Charge
RGB LED Indicator
OCPP 1.6J (Upgradeable to OCPP 2.0.1)
WI-FI 802.11b/g/n 2.4 GHz
RJ45 Ethernet (CAT 5/6)
4G (Optional)
Bluetooth (Commissioning Purposes)
RS485 | CAN | PLC
Remote Access & Diagnosis
Integrated RCD/GFCI Leakage Protection
PEN Fault Protection (UKCA)
Tamper Switch (UKCA)
Surge Protection
Overvoltage | Undervoltage
Overtemperature
Overcurrent
Operating Temperature: -30°C ~ +50°C
Rating: IP55 | IK10
Humidity: 5% ~ 95%
Altitude: ≤2000m
H*W*D: 1600*600*240mm
UKCA | CE | ETL
UKCA: BS EN IEC 61851-1:2019, BS EN 60947-4-1, BS 7671: 2018, EN IEC Standards, EMC Compliance
CE: EN IEC 61851-1:2019, EN 60947-4-1, RoHS, EMC Compliance, Directive 2014/53/EU of Radio Equipment
ETL: UL 2594, UL 2231-1/-2,, ISO 15118, CTEP, FCC Part 15 Subpart B, ICES-003, ETL, Energy Star, FCC

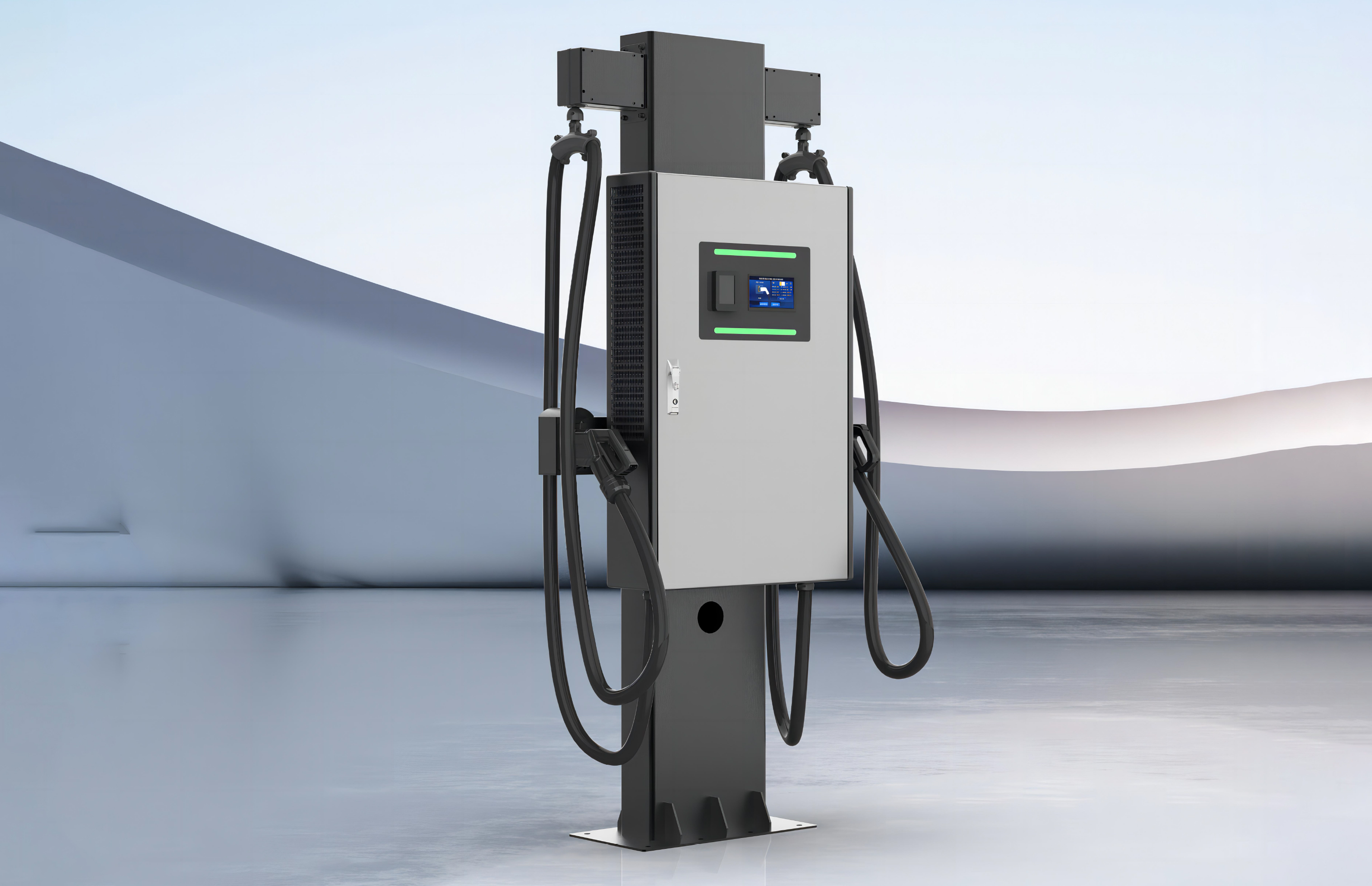

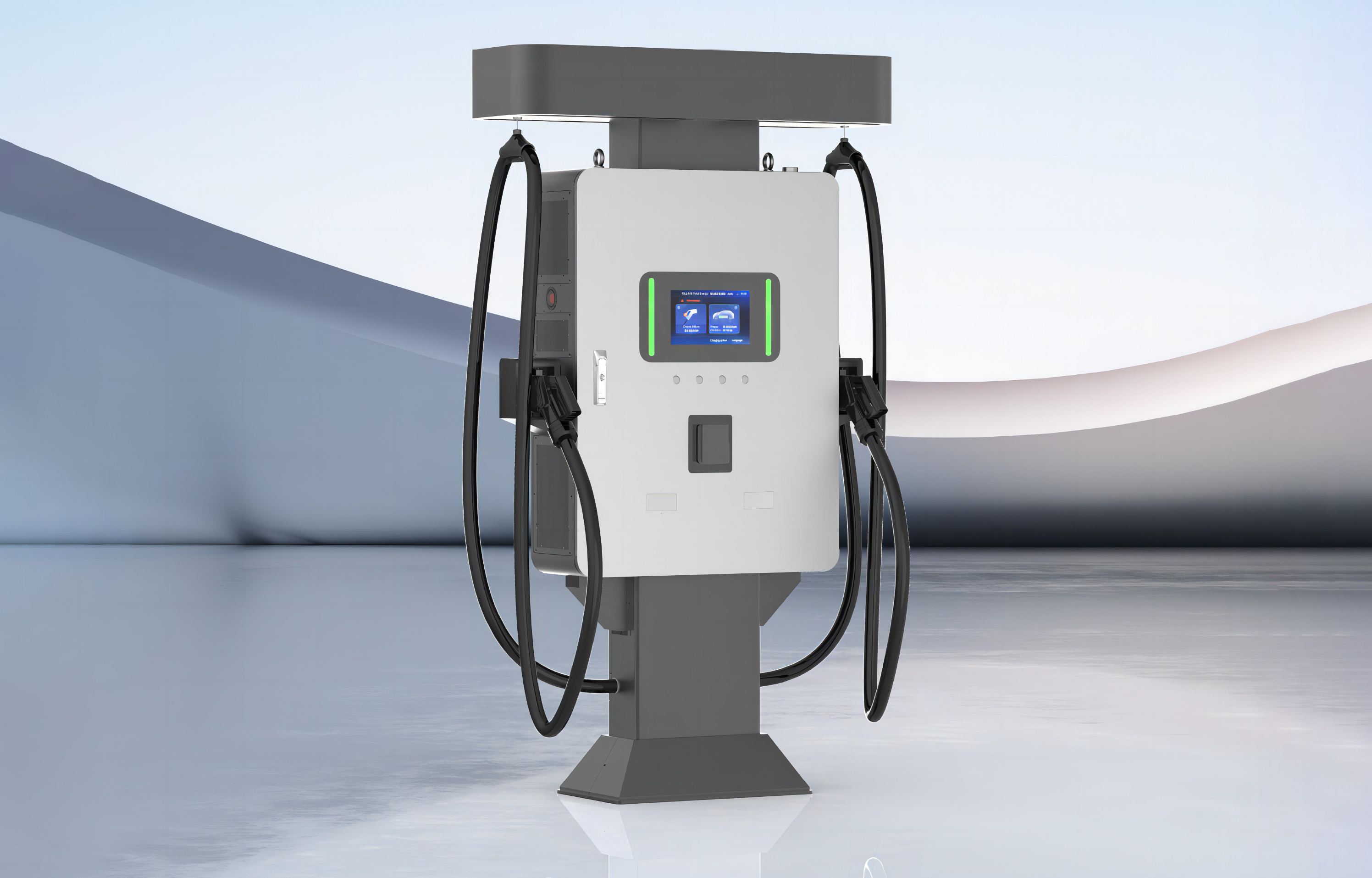

As an OEM charger, it allows easy customisation with advanced smart features, perfect for businesses seeking specialised charging solutions.
Untethered | Socket
CCS1/CCS2/NACS
40kW/60kW
3ph: 400V-480V (±10%)
6A - 49A/73A
50Hz - 60Hz
94% Efficiency
7" Touch Screen
Mobile APP (Customisable)
RFID Reader
Plug & Charge
RGB LED Indicator
OCPP 1.6J (Upgradeable to OCPP 2.0.1)
WI-FI 802.11b/g/n 2.4 GHz
RJ45 Ethernet (CAT 5/6)
4G (Optional)
Bluetooth (Commissioning Purposes)
RS485 | CAM | PLC
Integrated RCD/GFCI Leakage Protection
PEN Fault Protection (UKCA)
Tamper Switch (UKCA)
Surge Protection
Overvoltage | Undervoltage
Overtemperature
Overcurrent
Operating Temperature:-30°C ~ +50°C
Rating: IP55 | IK08
Humidity: 5% ~ 95%
Altitude: ≤2000m
H*W*D: 1100*700*200mm
Air Cooling
UKCA | CE | ETL
UKCA: BS EN IEC 61851-1:2019, BS EN 60947-4-1, BS 7671: 2018, EN IEC Standards, EMC Compliance
CE: EN IEC 61851-1:2019, EN 60947-4-1, RoHS, EMC Compliance, Directive 2014/53/EU of Radio Equipment
ETL: UL 2594, UL 2231-1/-2,, ISO 15118, CTEP, FCC Part 15 Subpart B, ICES-003, ETL, Energy Star, FCC

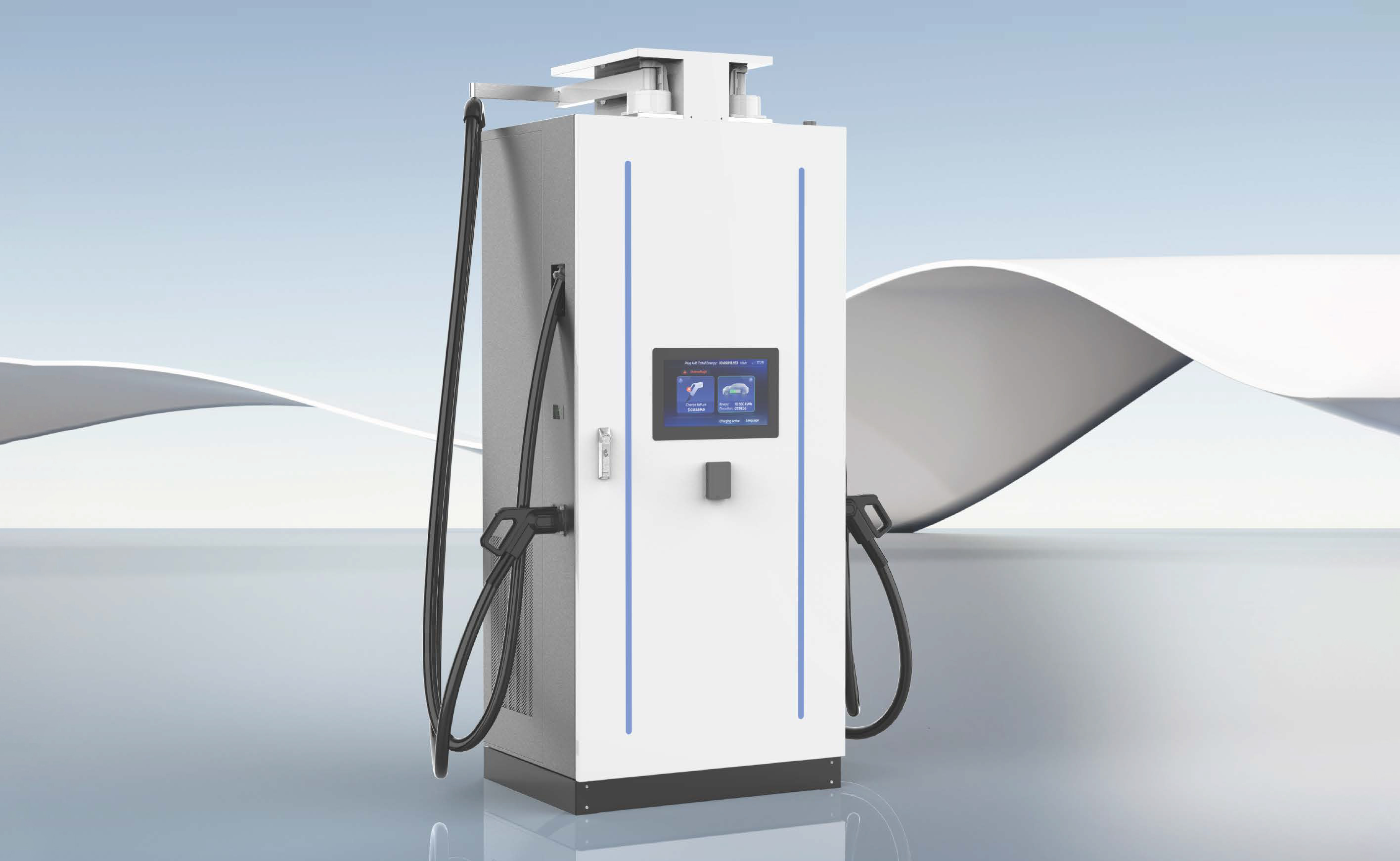

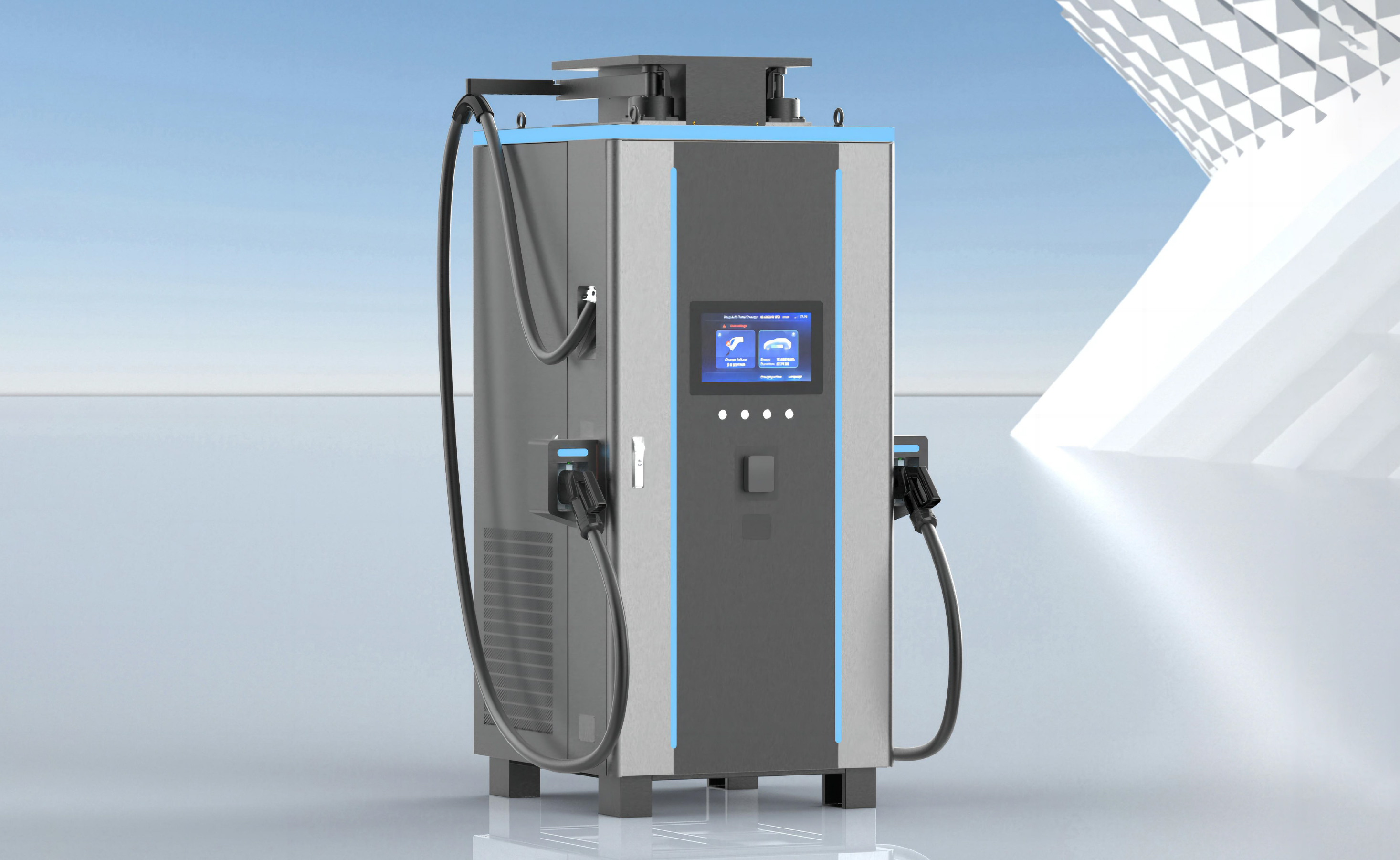

This OEM-ready charger delivers top-tier performance with the flexibility to integrate into diverse environments, ensuring personalised installation options.
Untethered | Socket
CCS1/CCS2/NACS
120kW-240kW
3ph: 400V-480V (±10%)
145A - 289A
50Hz - 60Hz
>95% Efficiency
15.6" Touch Screen + 4 buttons
Mobile APP (Customisable)
RFID Reader
Plug & Charge
RGB LED Indicator
OCPP 1.6J (Upgradeable to OCPP 2.0.1)
WI-FI 802.11b/g/n 2.4 GHz
RJ45 Ethernet (CAT 5/6)
4G (Optional)
Bluetooth (Commissioning Purposes)
RS485 | CAM | PLC
Integrated RCD/GFCI Leakage Protection
PEN Fault Protection (UKCA)
Tamper Switch (UKCA)
Surge Protection
Overvoltage | Undervoltage
Overtemperature
Overcurrent
Operating Temperature:-30°C ~ +50°C
Rating: IP55 | IK10
Humidity: 5% ~ 95%
Altitude: ≤2000m
H*W*D: 2165*900*1000mm
Fan Cooling
UKCA | CE | ETL
UKCA: BS EN IEC 61851-1:2019, BS EN 60947-4-1, BS 7671: 2018, EN IEC Standards, EMC Compliance
CE: EN IEC 61851-1:2019, EN 60947-4-1, RoHS, EMC Compliance, Directive 2014/53/EU of Radio Equipment
ETL: UL 2594, UL 2231-1/-2,, ISO 15118, CTEP, FCC Part 15 Subpart B, ICES-003, ETL, Energy Star, FCC
